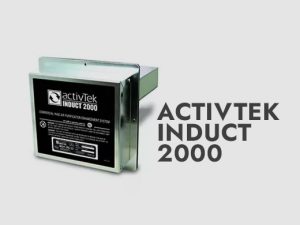

The ActivTek INDUCT 2000 substantially reduces odors, visible smoke in the air, and microbial populations on surfaces*, utilizing the patent pending ActivePure technology.
Duct mounted system
KEY FEATURES
- Duct or plenum-installed natural air system
- Discreet or concealed installation
- Coverage 2000 sq. ft.
- 120/220-volt optional installation
- UV bulb monitoring indicator included
- Low maintenance. No cleaning required
HOW IT WORKS
Powered by UV light
ActivePure consists of a special UV light and photocatalyst target, creating an Advanced Oxidation Process containing several friendly oxidizers.
IDLE FOR
Ideally applicable to situations in which accessible ducts already exist or will be installed, and where low maintenance, no cleaning, or discreet installation is preferred. Suited for:
- HVAC systems with accessible ducts
- Residential homes
- Apartments
- Small offices
- Nursing home units up to 3 tons
SPECIFICATIONS
| INDUCT 2000 | US40532 | |
| Electrical | 100/227 VAC, 50/60 HZ | .17A 19 watts* |
| Mechanical | UV bulb monitoring system installed | Safety switch installed |
| Dimensions | 9.62" H x 9.62" W x 11.25" D | 24.5cm L x 24.5cm W x 28.5cm D |
| Weight | 3 pounds | 1.2 kilograms |
| Max Temp | 200°F | |
INSTALLATION PROCESS
ActivTek INDUCT 2000 can be installed in any HVAC system directly into the plenum or directly above the air handler in remote or “downstream” locations. If multiple units are installed in the same plenum area, stagger the installation so all units incur direct airflow.
- An approximate 4" (10.16 cm) opening will need to be cut into the existing ductwork to install the unit properly.
- Unit should be installed after the air handler in the HVAC system.
- The ductwork around the installation area should be clean and dry to ensure proper adhesion of the gasket materials and any tape used.
Electrical Requirements
• Installation must be by a licensed HVAC professional.
